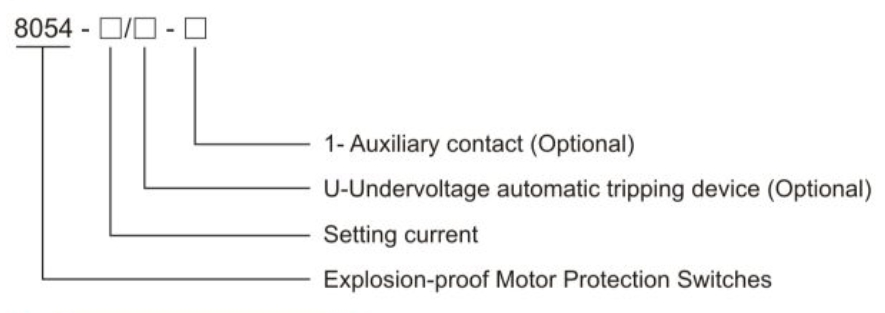

Nomenclature
Electrical Schematic Diagram
8054- Series Explosion-proof Motor Protection Switches
8054- Series Explosion-proof Motor Protection Switches
- Explosion protection
-China Ex(GB)
- Application in hazardous area
-Zone 1 and Zone 2
- GRP(Polyester resin,glass fibre reinforced)enclosure,built-in Eaton motor protectionswitch,which has the functions of over-current trip,short-circuit trip and phase lossreaction,and can be equiped with undervoltage tripping module.
- The enclosure is equipped with main terminal contact,auxiliary contact,operationhandle and current tripping adjusting shaft.
Product Description
Technical Specifications
Outline and installation dimensions
Product Description
Technical Specifications
|
Ex marking
|
Gas
|
Ex d e IIC Gb
|
||
|
Conformity to standards
|
GB3836.1,GB3836.2,GB3836.3
|
|||
|
Enclosure material
|
P (Polyester resin,glass fibre reinforced)
|
|||
|
Enclosure color
|
Black
|
|||
|
Rated voltage
|
380V AC
|
|||
|
Rated breaking capacity (KA)
|
65
|
16
|
12
|
|
|
Setting range of overload trip(A) |
0.1~0.16,0.16~0.25,
|
2.5~4,4~6.3,
|
16~20,20~25
|
|
|
0.25~0.4,0.4~0.63,
|
6.3~10,10~16
|
|||
|
0.63~1,1~1.6,1.6~2.5
|
||||
|
Auxiliary contact capacity
|
Ac15 1A/230V
|
|||
|
Voltage tripper(Under-voltage)
|
230V/50Hz
|
|||
|
Terminal section |
Main contact
|
2×10mm²
|
||
|
Auxiliary contact
|
2×2.5mm²
|
|||
|
Ambient temperature
|
-20℃~+70℃
|
|||
Outline and installation dimensions
